Detaching and attaching/replacing trim panel for rear window frame at left split door
Removal:

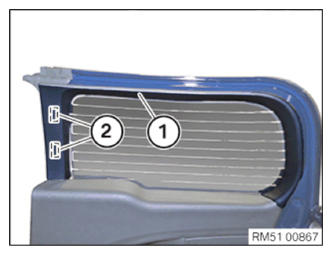

Detach trim panel (1) from clamps (2) and detach from rear window frame towards inside.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Installation:
NOTE:

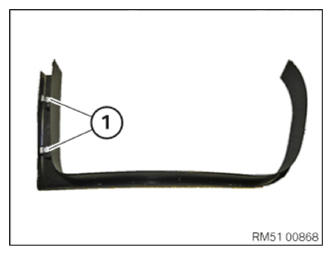

Clamps (1) must not be damaged or missing.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Position trim panel (1) on rear window frame and engage in clamps (2).
Courtesy of BMW OF NORTH AMERICA, INC.
|
