Removing and installing/replacing the automatic air flap control

Preliminary work needed:

• Remove front BUMPER COVER .

Removal:

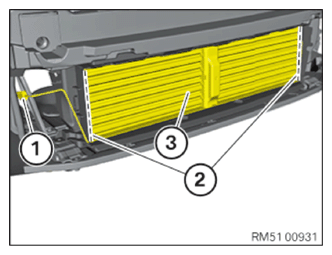

Unfasten plug connection (1) and disconnect.

Loosen the associated cable clip.

Open detent in area (2).

Remove air flap control (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert air flap control (3) and clip into detents in area (2).

Connect connector and associated cable clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install front BUMPER COVER .
