Removing and installing/replacing left trunk wheel arch trim

Preliminary work needed:

• Remove COVER  from tail panel.
• Remove ARMREST SIDE SECTION .
• Remove TRUNK COMPARTMENT LIGHT .

Removal:

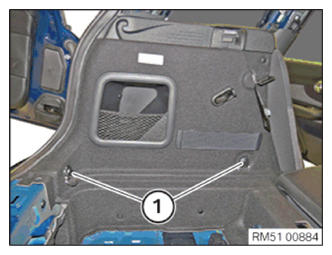

Remove covers (1), release screw underneath and remove lashing points.

Courtesy of BMW OF NORTH AMERICA, INC.

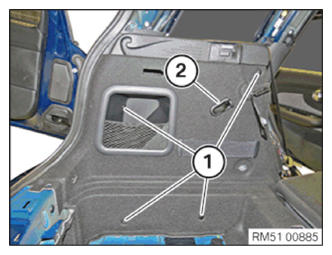

Release expanding rivet (1).

Detach cover (2).

Feed out and remove trunk wheel arch panel.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in trunk wheel arch panel.

Mount expanding rivets (1).

Mount cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Install lashing points and tighten screws.

Tightening torque 51 71 2AZ .

Mount covers (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install COVER  on tail panel.
• Install BACKREST SIDE SECTION .
• Install TRUNK COMPARTMENT LIGHT .
