Removing and installing/replacing trunk compartment light (Cooper)

Special tools required:

IMPORTANT: Follow INSTRUCTIONS for handling light bulbs (interior lights).

Removal:

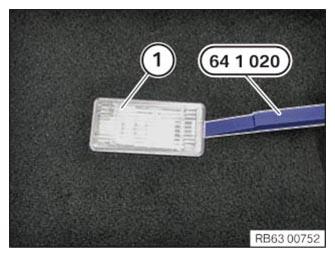

Lever out trunk compartment light (1) using special tool 64 1 020.

Disconnect associated connector and remove trunk compartment light (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

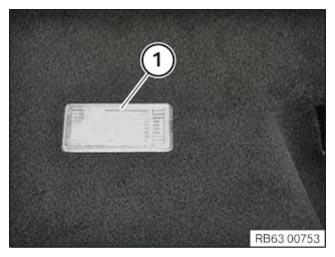

Connect the associated connector and join the trunk compartment light (1).

NOTE: Make sure the trunk compartment light (1) is correctly seated.
