Removing and installing (replacing) middle decorative strip on dashboard

When carrying out repair work on trim panels, make sure that the sensitive surfaces are not scratched or damaged.

Preliminary work needed:

• Remove CENTER LEFT FRESH AIR GRILLE .

Removal:

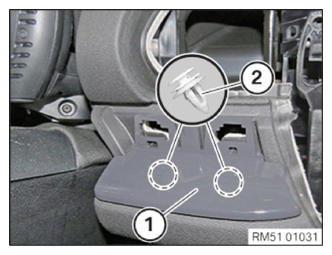

Lever out decorative strip (1) from the clamps (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

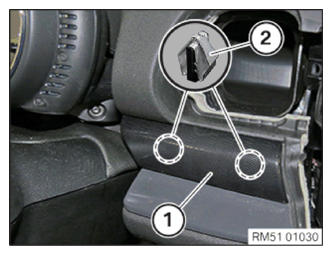

Release accent strip (1) from the clips (2) and remove upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip accent strip (1) into clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Engage decorative strip (1) at the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install CENTER LEFT FRESH AIR GRILLE .
