Replacing speaker cover

Preliminary work needed:

• Remove rear DOOR TRIM .

Removal:

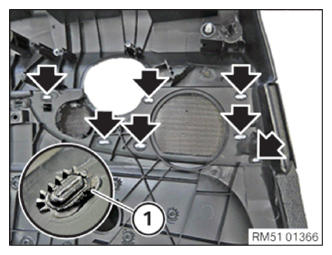

Grind down welding pins (arrows).

Pull the speaker cover off the door trim panel and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

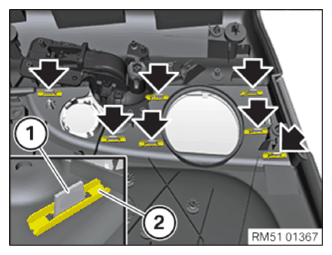

Feed in and position the speaker cover (1) properly.

Fix all lugs (1) of the speaker cover with the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install rear DOOR TRIM .
