Remove and install left or right rear door trim panel

Special tools required:

• 00 9 325

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Preliminary work needed:

• Remove ROCKER SWITCH for power electric windows

Removal:

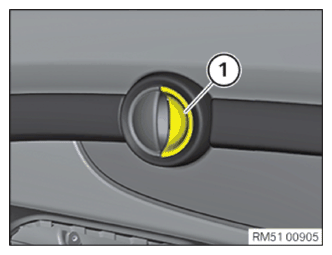

Remove cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

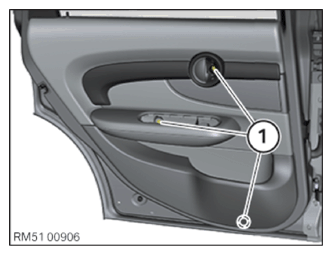

Unscrew the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

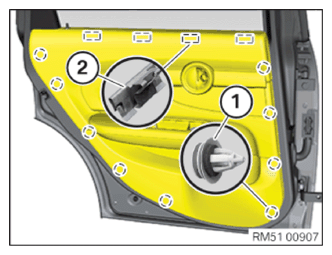

Starting at bottom, release door trim panel from clips (1) using special tool 00 9 325.

Release top of door trim panel from clamps (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Detach Bowden cable (1) first from counter support (2) and then from door lock (3).

Feed out door wiring harness from all holders.

Unlock and disconnect all plug connections, then remove door trim panel.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in door wiring harness in all mountings.

Connect and lock all plug connections.

Attach Bowden cable (1) first to door lock (3) and then to counter support (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Guide release rod into door trim panel.

Clip in door trim panel with clips (1) and clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install trim (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install ROCKER SWITCH for power windows
