Replacing speaker cover

Preliminary work needed:

• Remove front door TRIM PANEL .

Removal:

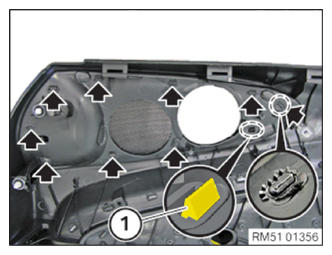

Grind down welding pins (arrows).

Release detent (1).

Pull the speaker cover off the door trim panel and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

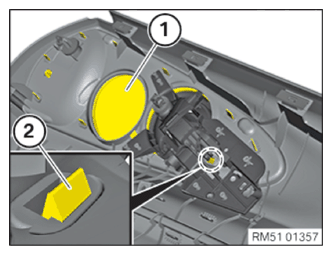

Feed the speaker cover (1) in.

Lock detent (2) correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

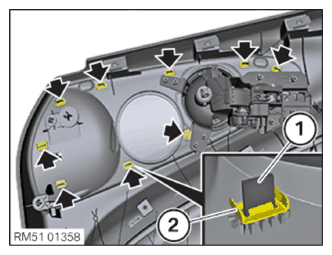

Fix all lugs (1) of the speaker cover with the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install front door TRIM PANEL .
