Removing and installing left or right front door trim panel

Special tools required:

• 00 9 325

Preliminary work needed:

• Remove POWER WINDOW SWITCH .
• Remove DOOR ENTRY LIGHTING .

Removal:

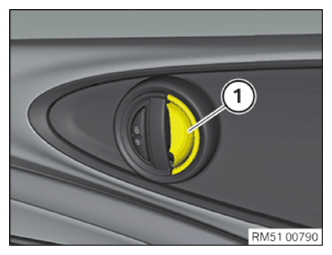

Remove cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

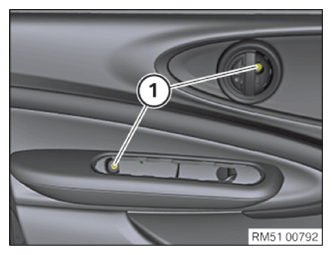

Unscrew the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

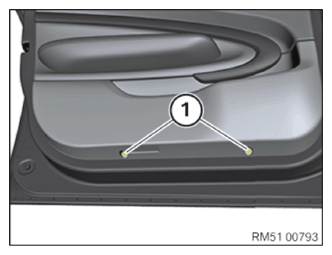

Unscrew the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

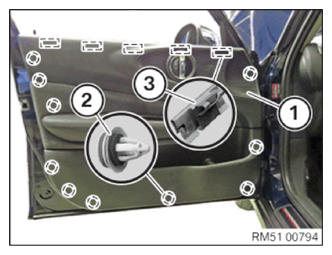

Release door trim panel (1) from clips (2) and clamps (3) using special tool 00 9 325.

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cable (1) on door lock.

Unlock and disconnect all associated plug connections.

Release associated cable clips.

Remove door trim panel.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

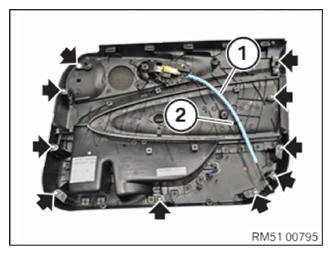

Make sure cable (1) is in correct position in holder (2).

Replace damaged clips.

Fit all clips with sealing washer.

Courtesy of BMW OF NORTH AMERICA, INC.

Attach cable (1) on door lock.

Connect all associated plug connections.

Courtesy of BMW OF NORTH AMERICA, INC.

Guide locking rod into door trim panel (1).

Engage door trim panel (1) with clips (2) and clamps (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

With door open, check function of door opener and outer door handle!

Required reworking:

• Install DOOR ENTRY LIGHTING .
• Install POWER WINDOW SWITCH .
