Replace armrest

Preliminary work needed:

• Remove front door TRIM PANEL .

Removal:

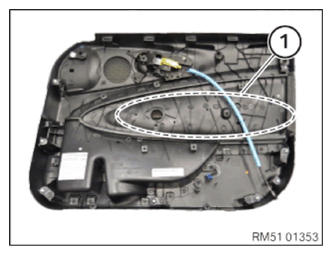

Drill out or grind down the welding pins in area (1).

Feed the armrest out of the door trim panel and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

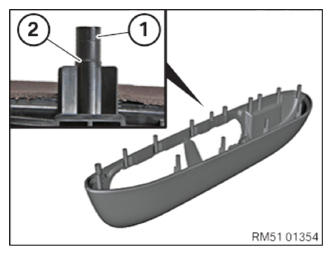

Saw off all welding pins (1) along the molding (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Insert the armrest in the door trim panel and align it.

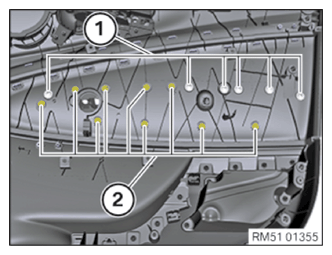

Tighten screws (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install front door TRIM PANEL .
