Removing and installing/replacing the windshield panel cover (front)

Preliminary work needed:

Removal:

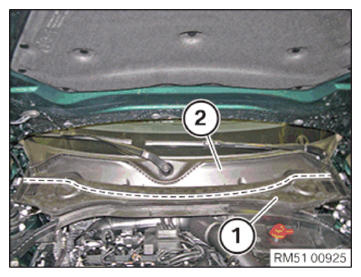

Pull windshield panel cover (1) forwards out of cover (2).

G13824011Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guide windshield panel cover (1) towards rear into cover (2).

NOTE: Check front cover is correctly seated relative to rear cover.
G13824011Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
