Detaching and attaching/replacing windshield panel cover (rear)

Preliminary work needed:

• Remove front WINDSHIELD PANEL COVER .
• Remove left and right WIPER ARM .

Removal:

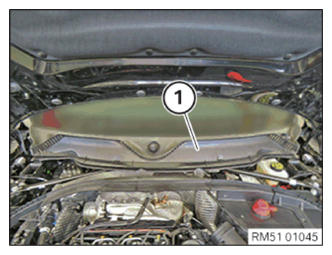

Starting at side, detach windshield panel cover (1) in upward direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Starting at side, press windshield panel cover (1) into detent at windshield.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install left and right WIPER ARM .
• Install front WINDSHIELD PANEL COVER .
