Removing/installing/replacing center trim

Preliminary work needed:

• Remove middle front RADIATOR GRILLE .

Removal:

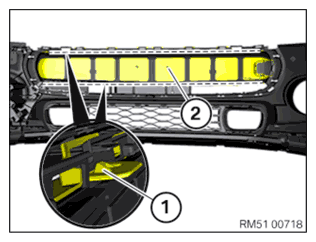

Release the detents (1) and remove cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

For replacement:

• Remount LICENSE PLATE .

Installation:

The detents (1) on cover (2) must not be damaged.

Engage cover (2) in the detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install center RADIATOR GRILLE .
