Removing and installing/replacing front grill center section
Preliminary work needed:
- Remove COVER from front grill.
Removal:

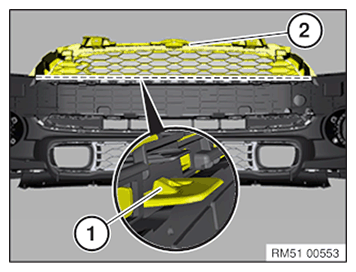

Release detents (1) and remove front radiator grill (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Installation:
Engage radiator grille (2) on detents (1).
NOTE:
Detents (1) must not be damaged.
Courtesy of BMW OF NORTH AMERICA, INC.
|
- Install TRIM on radiator grille.
