Remove and install/replace the center spoiler on bumper cover

Preliminary work needed:

• Remove front BUMPER COVER .
• Remove ORNAMENTAL GRILLE .

Removal:

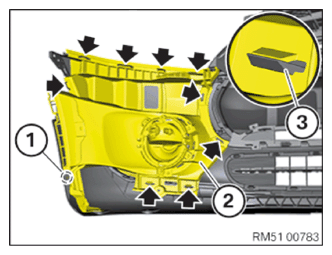

Release expansion rivet (1).

Release mount (2) at detents (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

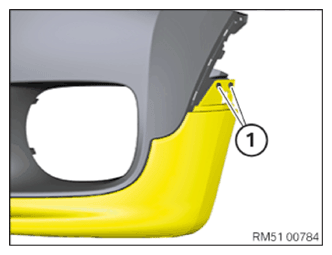

Release blind rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release catches (1) and remove spoiler (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position spoiler (2) and engage detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Insert blind rivet (1).

Parts:  Replace blind rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in mount (2) at detents (3).

Position expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install ORNAMENTAL GRILLE .
• Install front BUMPER COVER .
