Removing and installing/replacing loudspeaker (tweeter in rear door trim panel) (Cooper)

Preliminary work needed:

• Remove rear DOOR TRIM PANEL .

Removal:

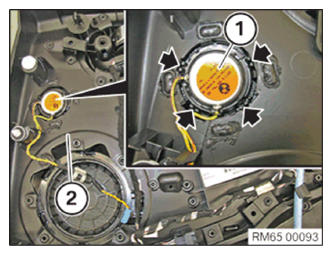

Unlock latches at marked points.

Remove tweeter (1) from door trim panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Properly position tweeter (1) in door trim panel (2).

Engage tweeter (1) correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Mount rear DOOR TRIM .
