Removing and installing/replacing amplifier (hi-fi system/Harman Kardon) (Cooper)
IMPORTANT:
Read and comply with NOTES
on protection against electrostatic discharge (ESD protection).
NOTE:
Comply with NOTES
on handling optical fibers.
Preliminary work needed:
- Disconnect cable from BATTERY EARTH LEAD
- Remove left trunk wheel ARCH PANEL .
Removal:
Remove screw (1).
Unfasten plug connection (2) and disconnect.
Remove amplifier (3) in arrow direction.
Replacement:
With harman kardon version, perform vehicle PROGRAMMING/CODING .
Installation:
NOTE:

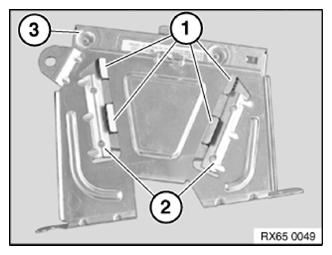

Lugs (1) must be correctly slid into guide (2).
Check that amplifier (3) is securely seated.
Install amplifier (3) in arrow direction.
Tighten screw (1).
Join and lock plug connection (2).
Required reworking:
- Connect BATTERY GROUND LEAD .
- Install left trunk wheel ARCH PANEL .
