Replacing LED module in front door trim panel on left or right (Cooper)

Preliminary work needed:

• Remove front DOOR TRIM PANEL .

Removal:

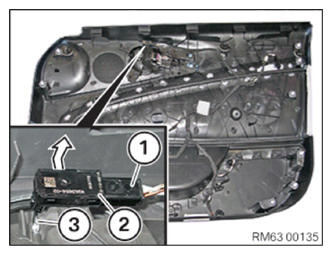

Door opener

Disconnect connector (1).

Release LED module for door trim panel (2) from holder.

Feed out the LED module for door trim panel (2) along with fiber-optic conductor (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Door opener

Release fiber-optic conductor (2) on detent using a screwdriver (3 mm blade).

Pull fiber-optic conductor (2) from LED module for door trim panel (1).

Courtesy of BMW OF NORTH AMERICA, INC.

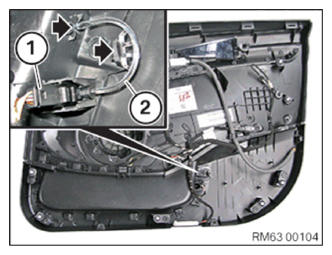

Door pocket:

Disconnect the associated connector on the LED module for the door trim panel (1).

Carefully release fiber-optic conductor (2) from the holder.

Release LED module for door trim panel (2) from holder.

Courtesy of BMW OF NORTH AMERICA, INC.

Door pocket:

Release fiber-optic conductor (2) on detent using a screwdriver (3 mm blade).

Pull fiber-optic conductor (2) from LED module for door trim panel (1).

Courtesy of BMW OF NORTH AMERICA, INC.

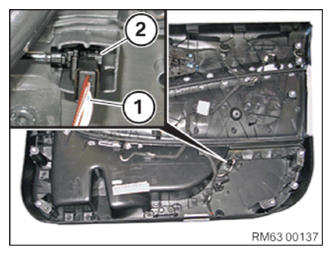

Door pocket:

Disconnect the connector (1) on the LED module for the door trim panel (2).

Release LED module for door trim panel (2) from holder and rotate slightly sideways.

Courtesy of BMW OF NORTH AMERICA, INC.

Door pocket:

Release fiber-optic conductor (2) on detent using a screwdriver (3 mm blade).

Pull fiber-optic conductor (2) from LED module for door trim panel (1).

Courtesy of BMW OF NORTH AMERICA, INC.

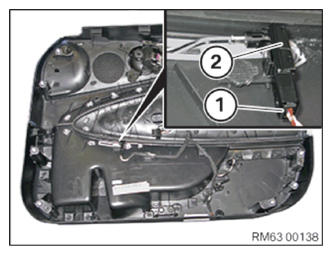

Door trim panel

Disconnect the connector (1) on the LED module for the door trim panel (2).

Release LED module for door trim panel (2) from holder.

Courtesy of BMW OF NORTH AMERICA, INC.

Door trim panel

Release fiber-optic conductor (2) on detent using a screwdriver (3 mm blade).

Pull fiber-optic conductor (2) from LED module for door trim panel (1).

Courtesy of BMW OF NORTH AMERICA, INC.

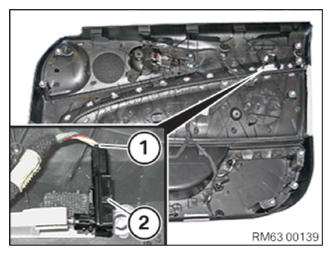

Door trim panel

Disconnect the connector (1) on the LED module for the door trim panel (2).

Release LED module for door trim panel (2) from holder.

Courtesy of BMW OF NORTH AMERICA, INC.

Door trim panel

Release fiber-optic conductor (2) on detent using a screwdriver (3 mm blade).

Pull fiber-optic conductor (2) from LED module for door trim panel (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Door opener

Insert fiber-optic conductor (2) into LED module for door trim panel (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Door opener

Feed in the LED module for the door trim panel (2) along with the fiber-optic conductor (3) into the holder and the door trim panel.

Connect the connector (1) to the LED module for the door trim panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Door pocket:

Insert fiber-optic conductor (2) into LED module for door trim panel (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Door pocket:

Feed in the LED module for the door trim panel (1) along with the fiber-optic conductor (2) into the holder and the door trim panel.

Connect the associated connector to the LED module for the door trim panel (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Door trim panel

Clip in LED module for door trim panel (2) into fiberoptic conductor.

Insert LED module for door trim panel (2) into holder.

Connect the connector (1) to the LED module for the door trim panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Door trim panel

Clip in LED module for door trim panel (2) into fiberoptic conductor.

Insert LED module for door trim panel (2) into holder.

Connect the connector (1) to the LED module for the door trim panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Door pocket:

Carefully insert LED module for door trim panel (2) partially into holder.

Clip in LED module for door trim panel (2) into fiberoptic conductor.

Insert LED module for door trim panel (2) fully into holder.

Connect the connector (1) on the LED module for the door trim panel (2).

Required follow-up work:

• Install front DOOR TRIM PANEL .
