Replace the LED module in rear door trim on left or right (Cooper)

Preliminary work needed:

Removal:

Door opener

Disconnect connector (1).

Release the LED module for door trim panel (2) from the holder.

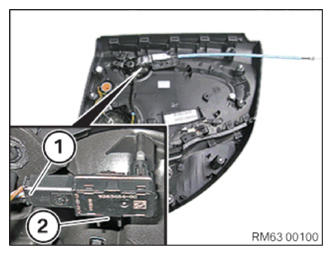

G13825800Courtesy of BMW OF NORTH AMERICA, INC.
G13825813Courtesy of BMW OF NORTH AMERICA, INC.

Door opener

Release fiber-optic conductor (2) on detent by using a screwdriver (3 mm blade).

Pull fiber-optic conductor (2) from LED module for door trim panel (1).

G11650070Courtesy of BMW OF NORTH AMERICA, INC.

Door pocket:

Disconnect the connector of the LED module for the door trim panel (2).

Carefully loosen fiber-optic conductor (1) from the holder.

Release the LED module for door trim panel (2) from the holder.

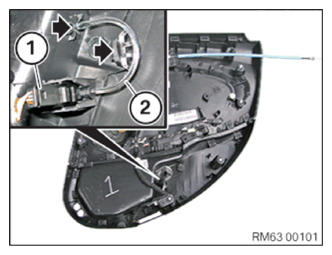

G13825815Courtesy of BMW OF NORTH AMERICA, INC.

Door pocket:

Release fiber-optic conductor (2) on detent by using a screwdriver (3 mm blade).

Pull fiber-optic conductor (2) from LED module for door trim panel (1).

G11650072Courtesy of BMW OF NORTH AMERICA, INC.

Door trim panel

Disconnect the connector of the LED module for the door trim panel (2).

Loosen the LED module for the door trim panel (2) including fiber-optic conductor from the holder.

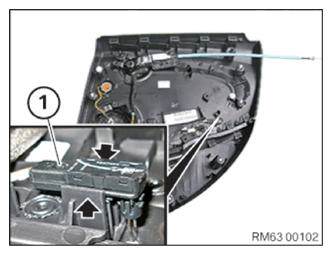

G13825817Courtesy of BMW OF NORTH AMERICA, INC.

Door trim panel

Release fiber-optic conductor (2) on detent by using a screwdriver (3 mm blade).

Pull fiber-optic conductor (2) from LED module for door trim panel (1).

G11650074Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Door opener

Insert fiber-optic conductor (2) into LED module for door trim panel (1).

NOTE: Ensure the fiber-optic conductor (2) is correctly fitted and engaged in the LED module for the door trim panel (1).
G11650070Courtesy of BMW OF NORTH AMERICA, INC.

Door opener

Insert the LED module for the door trim panel (2) including fiber-optic conductor into the holder and the door trim panel.

Connect the connector with the LED module for the door trim panel (1).

G13825813Courtesy of BMW OF NORTH AMERICA, INC.

Door pocket:

Insert fiber-optic conductor (2) into LED module for door trim panel (1).

NOTE: Ensure the fiber-optic conductor (2) is correctly fitted and engaged in the LED module for the door trim panel (1).
G11650072Courtesy of BMW OF NORTH AMERICA, INC.

Door pocket:

Insert the LED module for the door trim panel (1) including fiber-optic conductor (2) into the holder and the door trim panel.

Connect the connector with the LED module for the door trim panel (1).

NOTE: Ensure correct fit of the fiber-optic conductor (1) and the LED module for the door trim panel (2) in the holder and the door trim panel.
G13825815Courtesy of BMW OF NORTH AMERICA, INC.

Door trim panel

Insert fiber-optic conductor (2) into LED module for door trim panel (1).

NOTE: Ensure the fiber-optic conductor (2) is correctly fitted and engaged in the LED module for the door trim panel (1).
G11650074Courtesy of BMW OF NORTH AMERICA, INC.

Door trim panel

Insert the LED module for the door trim panel (1) including the fiber-optic conductor into the holder.

Connect the connector with the LED module for the door trim panel (1).

NOTE: Ensure fiber-optic conductor and LED module for side trim panel are correctly fitted in holder and door trim panel.
G13825817Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
