Removing and installing left or right wishbone (Cooper)
Special tools required:
- 31 2 230
Preliminary work needed:
- Remove front WHEEL .
- Remove front UNDERBODY PROTECTION .
Removal:

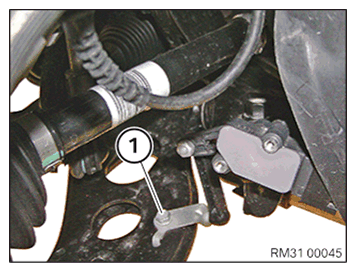

Only for right ride height sensor :
Remove screw (1).
Remove holder from wishbone.

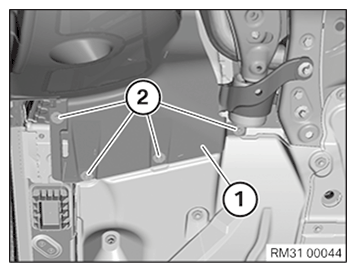

Release screws (2) from wheel arch panel (1).
Bend wheel arch panel (1) to one side.

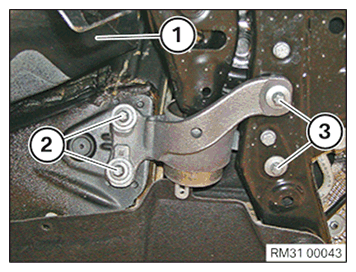

Release screws (2) and (3).
Release screw (4).

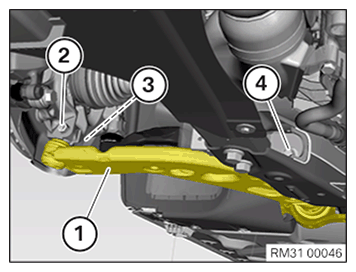

Slacken nut (2).
Pull screw (3) out of swivel bearing.
Release wishbone (1) from swivel bearing.
- If necessary, spread the swivel bearing with special tool 31 2 230
Remove wishbone (1).
Installation:
Position wishbone (1).
Align wishbone (1) thrust bearing to front axle support.
Part : Replace screw (4).
Screw in screw (4).
- Do not yet tighten screw (4)
Part: Replace screws (3).
Tighten down screws (3).
Tightening torque 31 12 3AZ .
Bend wheel arch panel (1) to one side.
Part: Replace screws (2).
Tighten down screws (2).
Tightening torque 31 12 4AZ .
Insert guide pin of wheel guide joint into swivel bearing.
Part : Replace screw (3).
Insert screw (3) with washer in the swivel bearing.
Consider the insertion direction of the screw (3). The screw (3) is inserted from the rear in the direction of travel.
Part : Replace nut (2).
Screw on the nut (2).
Tighten screw connection.
- Tightening is done via screw (3).
Tightening torque 31 12 1AZ .
Shift vehicle into NORMAL POSITION .
Tighten the bolt (4) in normal position.
Tightening torque 31 12 2AZ .
Tighten screws (2) of wheel arch panel (1).
Only for right ride height sensor :
Align the holder using the lug with the corresponding opening on the wishbone.
Tighten screw (1).
Tightening torque 37 14 5AZ .
Required follow-up work:
- Mount front UNDERBODY PROTECTION .
- Mount the front WHEEL .
- Carry out either KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or KINEMATICS DIAGNOSIS SYSTEM WHEEL ALIGNMENT WITH RIDE HEIGHT MEASUREMENT WITHOUT LOADING THE VEHICLE .
