Removing And Installing The Left Split Door (Cooper Clubman F54)

Removal:

Open split door.

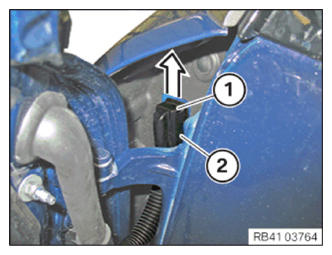

Pull the lock (1) upwards and disconnect the plug connection (2).

Courtesy of BMW OF NORTH AMERICA, INC.

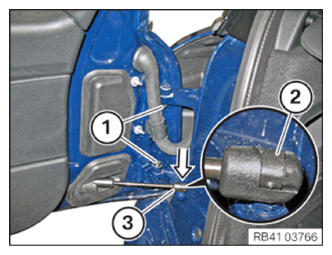

Loosen the hinge bolts (1) between both hinge halves at the top and bottom.

Slightly lift the clamp (2) in the direction of the arrow using a screwdriver.

Lift off ball socket (3) from ball hub.

Remove the split door.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach the split door to the hinges.

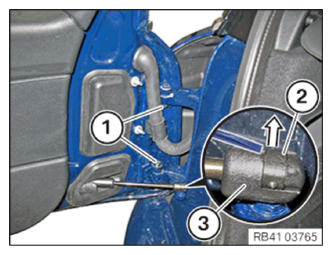

Check the clamps (2) are positioned correctly.

Connect the ball socket (3) to the ball hub.

Tighten the hinge bolts (1) between both hinge halves at the top and bottom.

Tightening torque 41 62 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

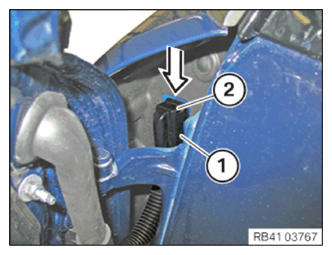

Connect the plug connection (1) and push the lock (2) downwards.

Carefully close the split door.

Check gap dimensions.

If necessary, ADJUST THE DOOR .

Courtesy of BMW OF NORTH AMERICA, INC.
