Remove and install/replace Active Sound Design control unit (Cooper)
IMPORTANT:
Read and comply with NOTES
on protection against electrostatic discharge (ESD protection).
NOTE:
Comply with NOTES
on handling optical fibers.
Preliminary work needed:
- Disconnect cable from BATTERY EARTH LEAD
- Remove left luggage compartment wheel arch TRIM PANEL .
Removal:

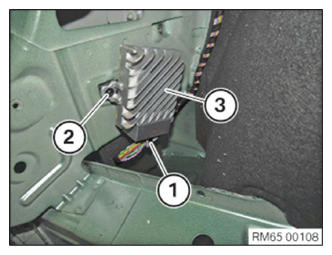

Unlock and disconnect the connector (1).
Remove screw (2).
Remove Active Sound Design control unit (3).
Installation:
Position Active Sound Design control unit (3) correctly.
Tighten screw (2).
Insert and connect connector (1).
Replacement:
Carry out VEHICLE PROGRAMMING/CODING .
Required reworking:
- Connect BATTERY GROUND LEAD .
- Install left luggage compartment wheel arch TRIM PANEL .
