Removing and installing/replacing a front center left (inside) ultrasonic transducer (Park Distance Control) (Cooper)

Preliminary work needed:

Removal:

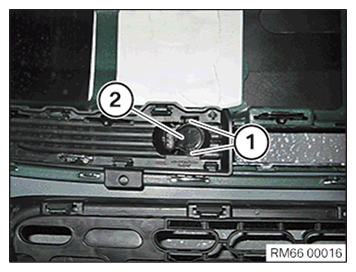

Unlock detents (1).

Pull out ultrasonic sensor (2) upwards out of holder.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Before installation of ultrasonic sensor (2) on wiring harness, clean plug connection!

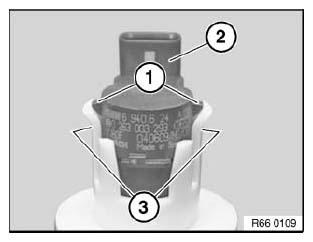

Safety catches (1) of ultrasonic transducer (2) must engage exactly in mountings (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Engage ultrasonic sensor (2) in holder.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:
