Removing and installing/replacing optional equipment system (SAS) control unit (Cooper Convertible)

NOTE: The optional equipment system (SAS) is a control unit in which the functions of the suspension control systems and the assist systems are integrated.

IMPORTANT: Read and comply with NOTES on protection against electrostatic discharge (ESD protection)!

Preliminary work needed:

Disconnect BATTERY GROUND LEAD. .

Removal:

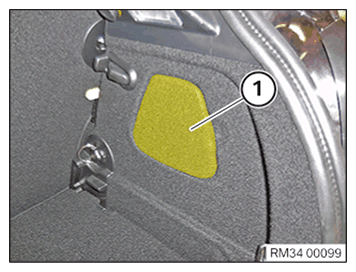

Remove cover (1) of right luggage compartment TRIM PANEL .

Courtesy of BMW OF NORTH AMERICA, INC.

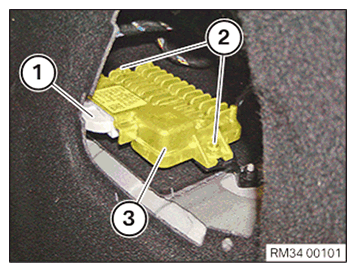

Unlock and disconnect plugs (1).

Loosen screws (2).

Remove SAS control unit (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

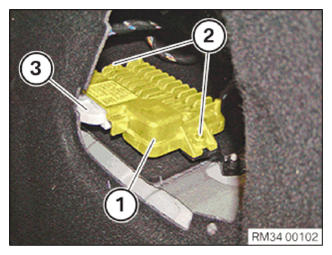

Position SAS control unit (1).

Insert nuts (2) and tighten.

Tightening torque 34 51 6AZ .

Connect plug connection (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Connect BATTERY GROUND LEAD.
Replacement only: Perform the PROGRAMMING/CODING .
