Replacing seat cover for front passenger seat (sport/manual) (Cooper Convertible)

Special tools required:

• 52 0 050

Attention!

Risk of damage on sharp-edged seat mechanism.

Guide all cables carefully through seat and backrest mechanism.

Make sure cable is routed without kinks and tension.

Make sure plug connections are correctly locked.

Make sure connectors are correctly seated in detents.

Attention!

US/CDN front passenger seat (with CIS mat) only:

A faulty facing may only be replaced completely with the CIS mat.

New facing is supplied with CIS mat and, if necessary, seat heating.

After installation, the CIS mat must be enabled with the diagnostic system.

Individual parts not available.

Enabling seat occupancy sensor (CIS mat):

• Connect diagnostic system
• Carry out service function or test module
• Delete fault memory if necessary

Attention!

• Microencapsulated screws must be coated with Loctite if they are to be reused
• Screw connection must be completed within 20 min. (start of harden)
• Microencapsulated screws must not  be retightened.
• Thread of nut must be cleaned beforehand in event of repeated use

Preliminary work needed:

• Remove front passenger SEAT .
• Remove THIGH SUPPORT .
• Remove INNER COVER .
• Remove OUTER COVER .

Removal:

Use of the universal seat mount is recommended for carrying out professional repairs.

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook welt (1).

Version with seat heating only:

Unlock and disconnect connector (2).

Feed out cable.

Attention!

Feed the wiring harness carefully through the seat and backrest mechanism as the edges of the frame can be sharp.

Courtesy of BMW OF NORTH AMERICA, INC.

Equipment specification with ISOFIX:

Drill out rivet (1).

Take off holder (2).

Remove remnants of rivets.

Courtesy of BMW OF NORTH AMERICA, INC.

F56/F57 only:  Detach cable (1) from holders (2 and 3).

Shift the backrest into an upright position.

Release left and right screws (4).

Completely remove the backrest (5) to the top.

If necessary, feed out cable and set aside backrest.

Courtesy of BMW OF NORTH AMERICA, INC.

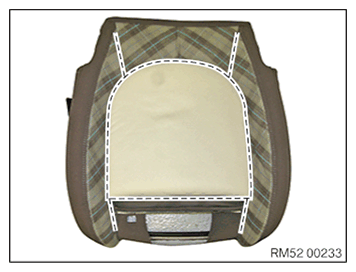

Loosen clips (1) on the left and right side.

Courtesy of BMW OF NORTH AMERICA, INC.

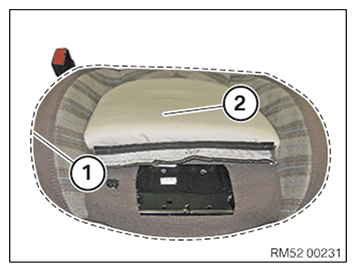

Detach all-round piping (1) and remove the seat cover (2) with the facing.

If necessary, feed out cable.

Courtesy of BMW OF NORTH AMERICA, INC.

Release all clamps.

Remove seat cover from upholstery.

Attention!

Remove all remnants of clamps from seat cover and upholstery.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position seat cover.

Bend new clamps (2) with special tool 52 0 050.

1. Upholstery
2. Clamp
3. Trim wire in upholstery
4. Trim wire in cover
5. Seat cover

Courtesy of BMW OF NORTH AMERICA, INC.

Parts:  Replace clamps.

Place the seat cover on seat frame.

If necessary, feed in cable.

Place the seat cover (2) with the facing and attach all-round piping (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install clips (1) on the left and right side.

Courtesy of BMW OF NORTH AMERICA, INC.

Install backrest (5).

If necessary, feed in cable.

Tighten screws (4) on left and right.

Tightening torque 52 10 2AZ .

F56/F57 only:  Attach cable (1) in holders (2) and (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Equipment specification with ISOFIX:

Attach holder (2) using the rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Attach welt (1).

Version with seat heating only:

Connect connector (2).

Attention!

Feed the wiring harness carefully through the seat and backrest mechanism as the edges of the frame can be sharp.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install THIGH SUPPORT .
• Install INNER COVER .
• Install OUTER COVER .
• Install front passenger SEAT .
