Remove or install left or right thigh support from/on the front seat (sport/manual) (Cooper Convertible)
IMPORTANT:
- Microencapsulated screws must be coated with Loctite if they are to be reused
- Screw connection must be completed within 20 min. (start of hardening)
- Microencapsulated screws must not be retightened.
- Thread of nut must be cleaned beforehand in event of repeated use
Removal:

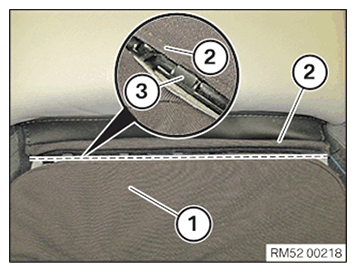

Adjust thigh support (1) towards the front.
Lever out edge stripping (2) of seat cover from holder (3).

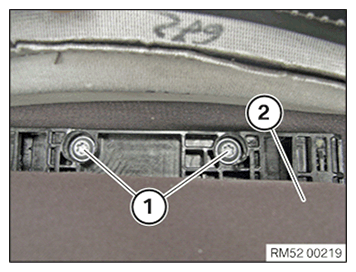

Unscrew the screws (1).
Detach thigh support (2) towards the front and remove.
Version with seat heating only:

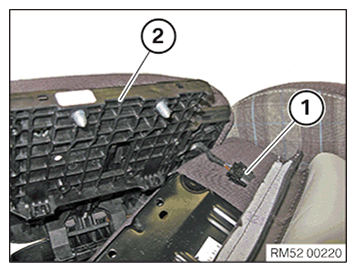

Unfasten plug connection (1) and disconnect.
Remove thigh support (2).
Installation:
Version with seat heating only:
Position thigh support (2) and connect connector (1).

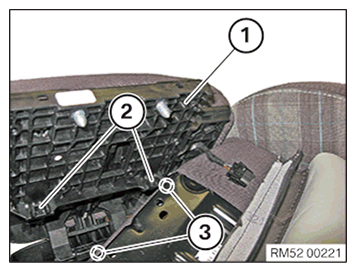

Feed in thigh support (1) with guides (2) into corresponding openings on seat frame (3).
Tighten down screws (1).
Attach edge stripping (2) of seat cover in holder (3).
