Removing and installing complete rear left or right power electric windows (Cooper Convertible)

Preliminary work needed:

Removal:

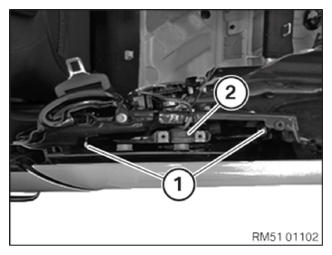

Release screws (1) on the connecting bracket (2).

Remove connecting bracket (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

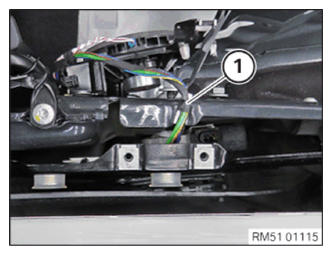

Release wiring harness mounting (1).

Close side window completely.

Courtesy of BMW OF NORTH AMERICA, INC.

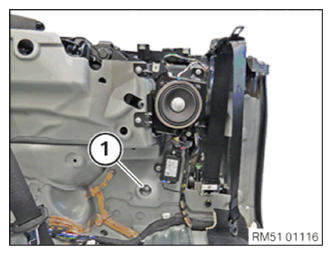

Loosen screw (1) (do not release).

Pull out power electric windows slightly upwards.

Disconnect the plug connection on the flat motor.

Remove power electric windows.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect plug connection on flat motor.

Feed in power electric windows.

Tighten screw (1).

Tightening torque 51 37 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in wiring harness mounting (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust distance between side window glass and side panel:

Gaps (A and B) between side window (1) and side panel (2):

Dimension (A) = 20.5 ±1 mm

Dimension (B) = 13.5 ±1 mm

IMPORTANT: Side window glass must shift into the seal correctly when convertible top is closed.

Courtesy of BMW OF NORTH AMERICA, INC.

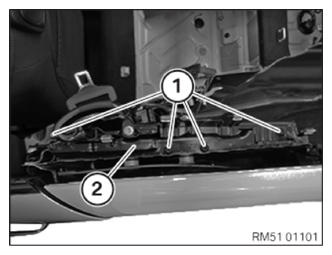

Tighten screws (1) on power electric windows (2).

Tightening torque 51 37 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Attach connecting bracket (2).

Tighten down screws (1).

Tightening torque 51 37 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
