Removing and installing/replacing inner window cavity cover strip for door window, rear left or right (Cooper Convertible)

Special tools required:

• 00 9 317

Preliminary work needed:

• Remove rear side TRIM PANEL .
• Remove outer window CHANNEL STRIP .

Removal:

Lever out catches (1) on inner window cavity cover strip (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lever out window cavity cover strip (1) with special tool 00 9 317 towards top.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Courtesy of BMW OF NORTH AMERICA, INC.

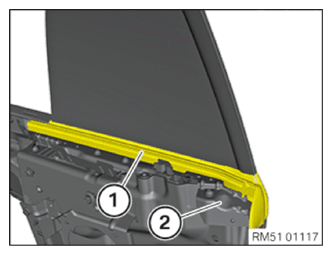

Attach inner window channel strip (1), align and fit it onto the connecting bracket (2).

Courtesy of BMW OF NORTH AMERICA, INC.

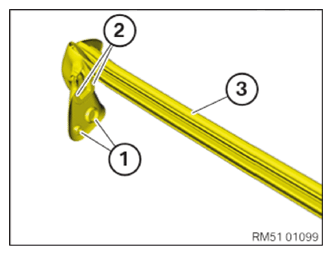

Engage inner window channel strip (2) into the detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install rear TRIM PANEL .
• Install outer window CHANNEL STRIP .
