Removing and installing/replacing trim on front left or right wheel arch (Cooper Convertible)

Preliminary work needed:

• Release TRIM PANEL  for entrance in the front area.

Removal:

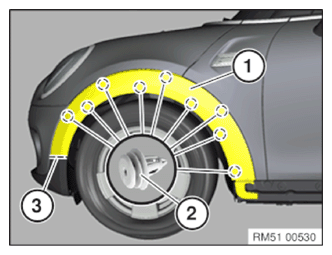

Release trim (1) on clips (2) and detents in the area (3).

If necessary, disconnect associated plug connection and remove cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

If replacing with USA national version:

Remount SIDE MARKER LIGHT .

Installation:

Connect plug connections.

Clip in trim (1) on clips (2) and detents (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install TRIM PANEL  for cover on side member.
