Detaching and attaching/replacing trim panel for left or right door sill (Cooper Convertible)

Preliminary work needed  :

• Remove trim on TRIM PANEL  for cover on side member.

Removal  :

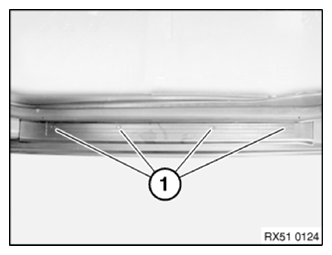

Release fixtures (1).

Courtesy of BMW OF NORTH AMERICA, INC.

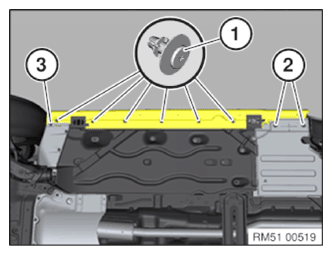

Release expanding rivet (1) and screws (2, 3).

Courtesy of BMW OF NORTH AMERICA, INC.

Open door.

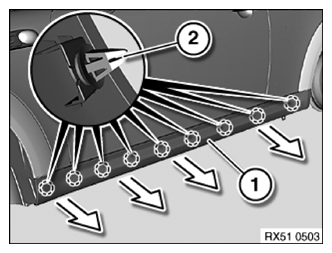

Release and remove trim panel (1) on clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

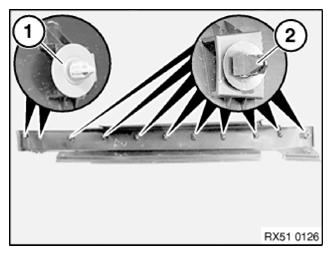

Replace faulty clips (1, 2).

Courtesy of BMW OF NORTH AMERICA, INC.

Open door.

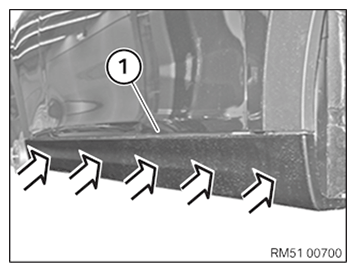

Position and engage trim panel (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Replace faulty expanding rivets (1).

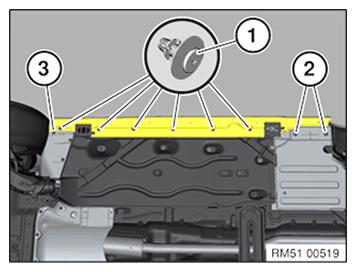

Mount expanding rivets (1) and tighten screws (2, 3).

Courtesy of BMW OF NORTH AMERICA, INC.

Replace faulty clips (1).

Engage clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install cover on TRIM PANEL  for cover on side member.
