Replace Tail Panel Outer Section And Inner Section (Cooper, Cooper S, John Cooper Works)

Read contents of BODY, GENERAL .

Procedure OBSERVE  repair stage 2!

STRIP DOWN VEHICLE .

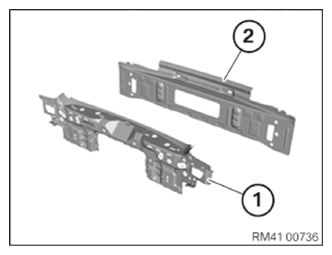

G13797100Courtesy of BMW OF NORTH AMERICA, INC.

The following new parts are required (see Electronic Parts Catalog):

  1. Rear trim, inner
  2. Rear trim, outer skin

Following CONSUMABLES  are required:

Material Quantity
Adhesive K5b 1
Blind rivet N3 13
Blind rivet N6 2
Punch rivet N4 28
EMC screw 7
Cavity sealing wax remover 1
Cleaning agent R1 1
Sealant D1 1

Removal

For the most part, the operations are described for the left side of vehicle. The work is identical on the right side.

G13797101Courtesy of BMW OF NORTH AMERICA, INC.

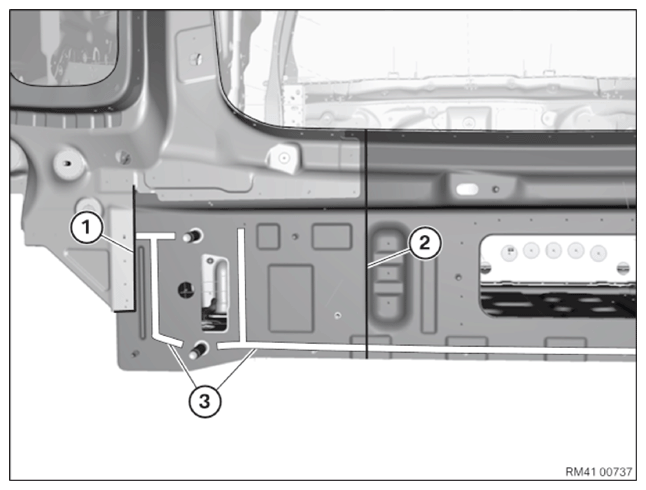

Mark severance cuts (1) and (2) and cut according to schematic diagram.

IMPORTANT: Severance cut (1): Cut outer metal panel only.
Severance cut (2): Separate tail panel outer section and tail panel inner section only!

Open welded connections in areas (3).

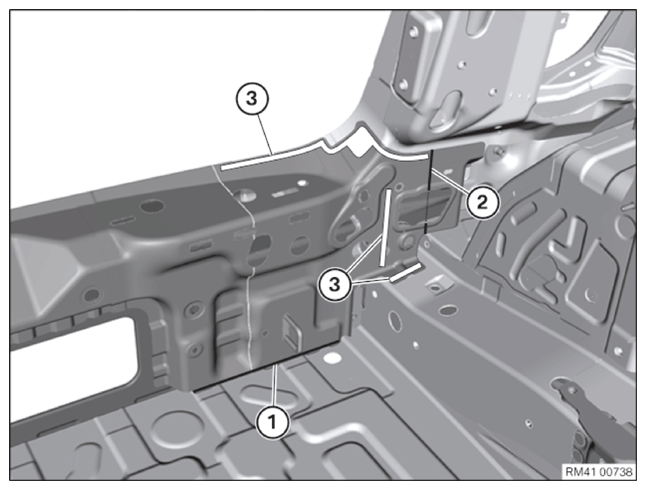

G13797102Courtesy of BMW OF NORTH AMERICA, INC.

View of passenger compartment.

Mark severance cuts (1) and (2) and cut according to schematic diagram.

IMPORTANT: Severance cut (2): Cut outer metal panel only.

Detach welded connections in areas (3) and remove the loosened sheet metal part.

Release welded connections in areas (1) and remove bulkhead (2).

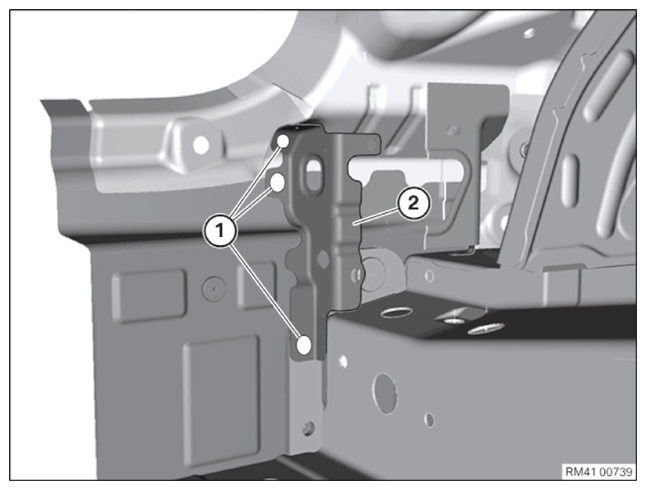

G13797103Courtesy of BMW OF NORTH AMERICA, INC.

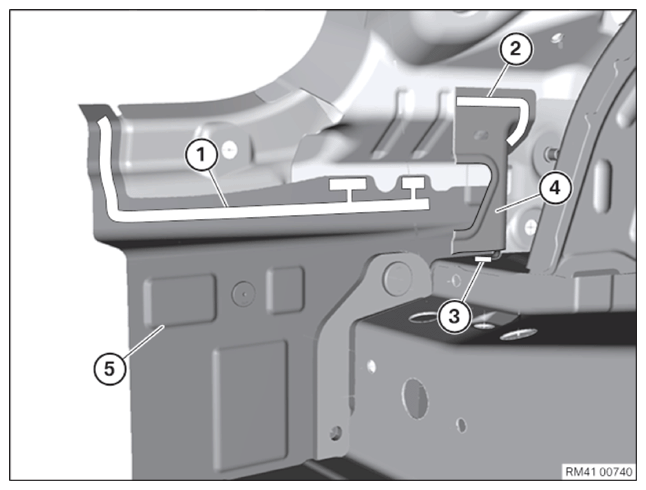

Open welded connections in areas (1) to (3). Remove the loosened sheet metal parts (4) and (5).

G13797104Courtesy of BMW OF NORTH AMERICA, INC.

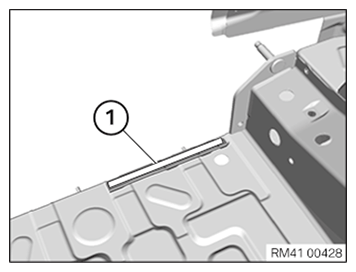

Release welded connections in area (1) and remove

G11648891Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

For the most part, the operations are described for the left side of vehicle. The work is identical on the right side.

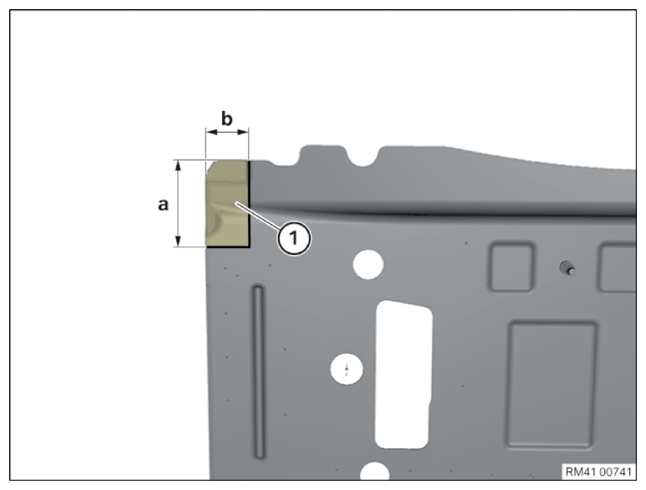

G13797106Courtesy of BMW OF NORTH AMERICA, INC.

Cut out area (1).

a = 55 mm.

b = 25 mm.

Changed joining sequence: New part is joined beneath area (1) from outside with overlap.

Smooth down the separation edge if applicable. Adapt new part in transitional area (overlap).

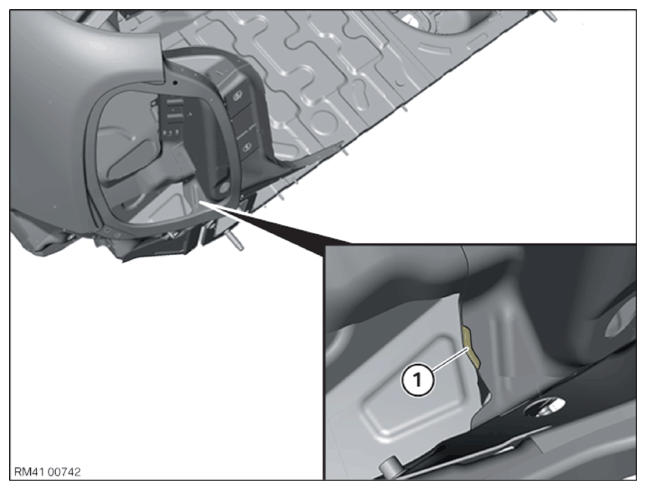

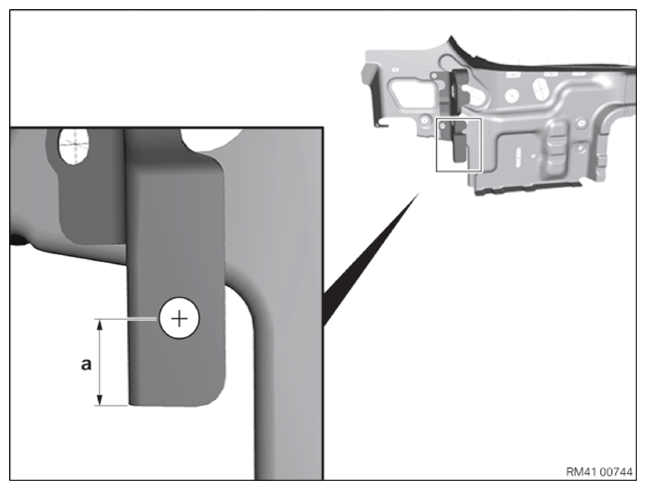

G13797107Courtesy of BMW OF NORTH AMERICA, INC.

Produce recess (1) approx. 20 x 5 mm for MAG welded connection by grinding.

G13797108Courtesy of BMW OF NORTH AMERICA, INC.

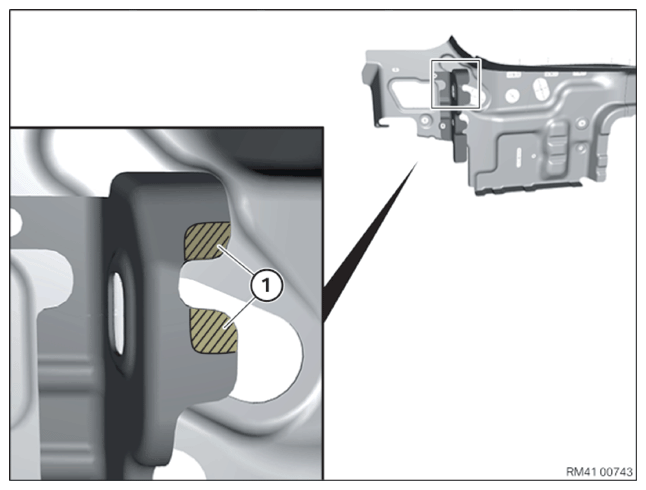

Cut out areas (1) for MAG welded connections on bulkhead.

G13797109Courtesy of BMW OF NORTH AMERICA, INC.

Produce a bore dia. 8 millimeter on bulkhead.

a = 15 mm.

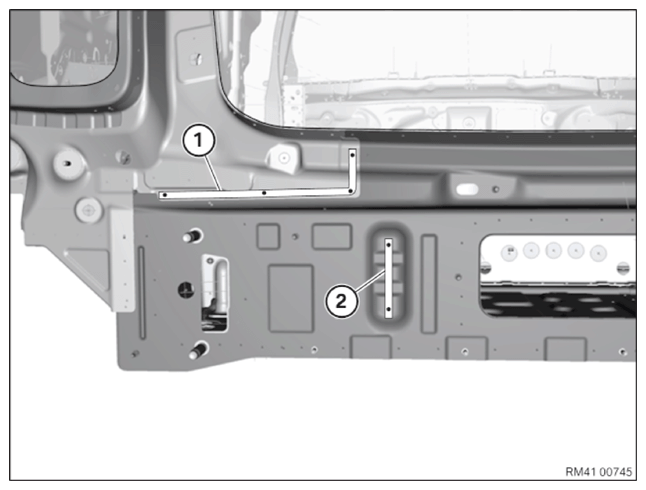

G13797110Courtesy of BMW OF NORTH AMERICA, INC.

Adjust new parts to fit and secure.

In areas (1) and (2), drill ø 4.2 mm bores for blind rivet.

Area Number
1 3
2 2

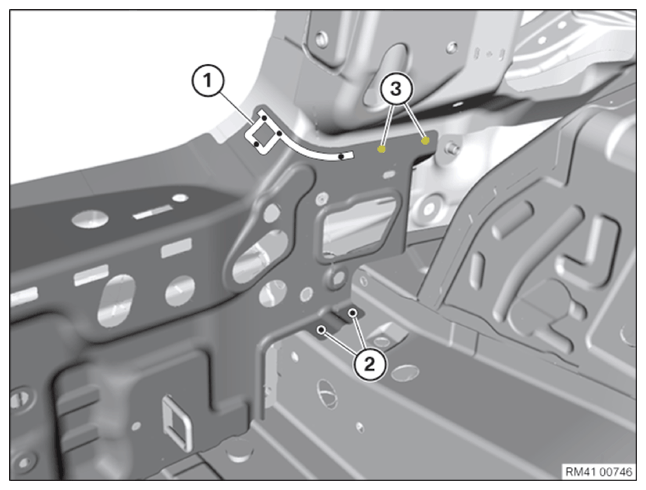

G13797111Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1) and (2), drill ø 4.2 mm bores for blind rivet.

Area Number
1 4
2 2

Prepare 2 x plug-welds in the areas (3).

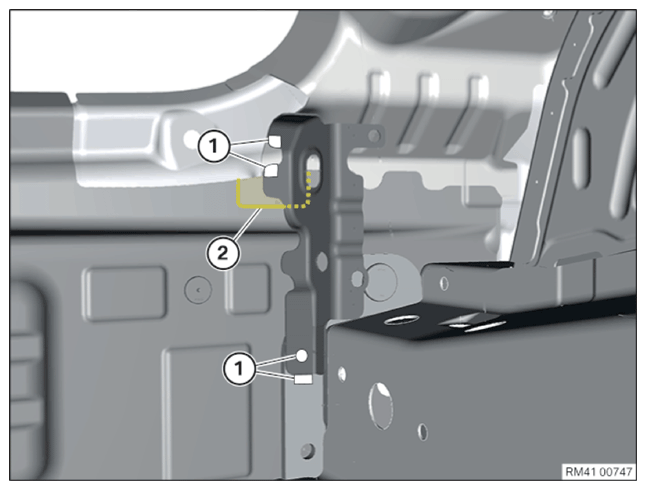

G13797112Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The tail panel inner section is hidden for purposes of clarity!

Prepare for MAG welding in areas (1).

IMPORTANT: Mark area (2) on tail panel. No adhesive must be applied to this area during installation!

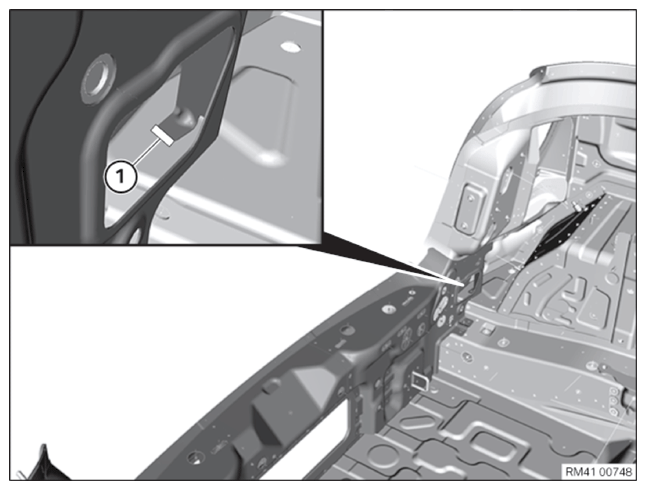

G13797113Courtesy of BMW OF NORTH AMERICA, INC.

Prepare for MAG welding in area (1).

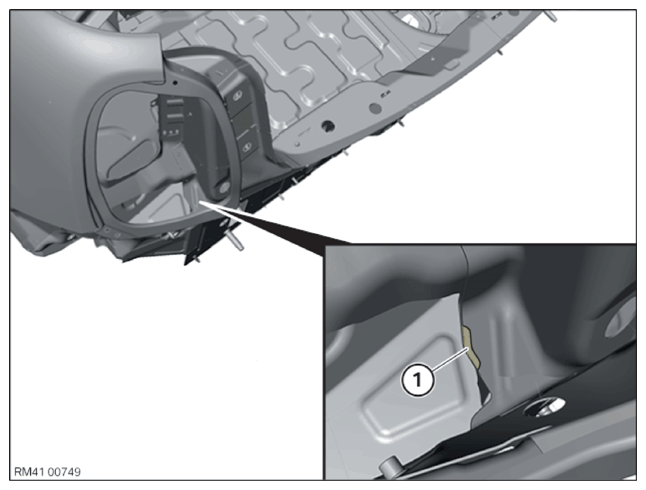

G13797114Courtesy of BMW OF NORTH AMERICA, INC.

Prepare for MAG welding in area (1).

G13797115Courtesy of BMW OF NORTH AMERICA, INC.

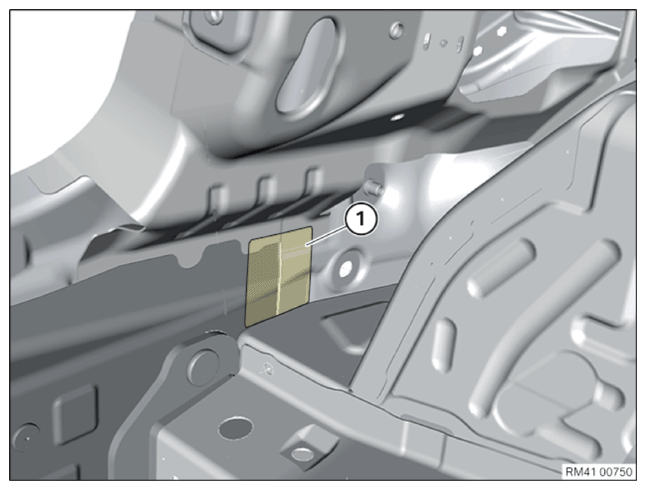

Produce a reinforcement plate approx. 60 x 60 mm for area (1).

Prepare reinforcement plate and area (1) for joining by bonding.

NOTE: The tail panel inner section is hidden for purposes of clarity!

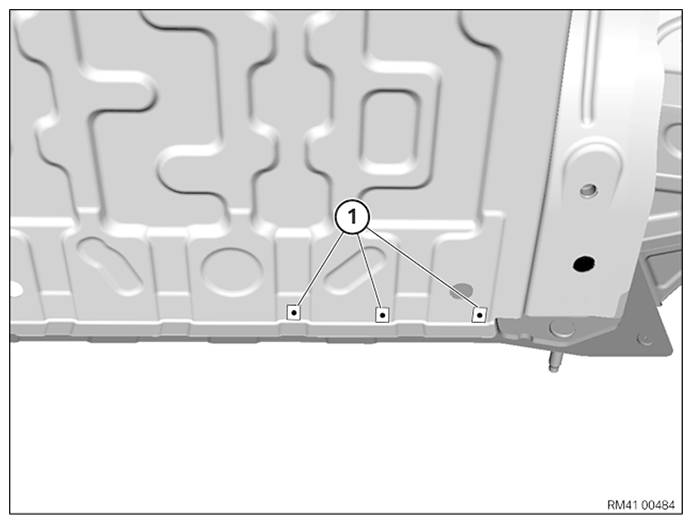

G11648896Courtesy of BMW OF NORTH AMERICA, INC.

View of vehicle underside:

Set 3 bores ø 4.2 mm for the blind rivet in the areas (1).

Remove new parts again and deburr bores.

IMPORTANT: Do not grind new parts and body in area of bonding surfaces.

Installation

Clean all bonding surfaces on new part and on vehicle with cleaning agent R1.

Apply adhesive to bonding surfaces.

Do not apply adhesive to joining areas which welding operations will be performed in.

When installing the new parts, make sure that there is sufficient adhesive on bonding surfaces.

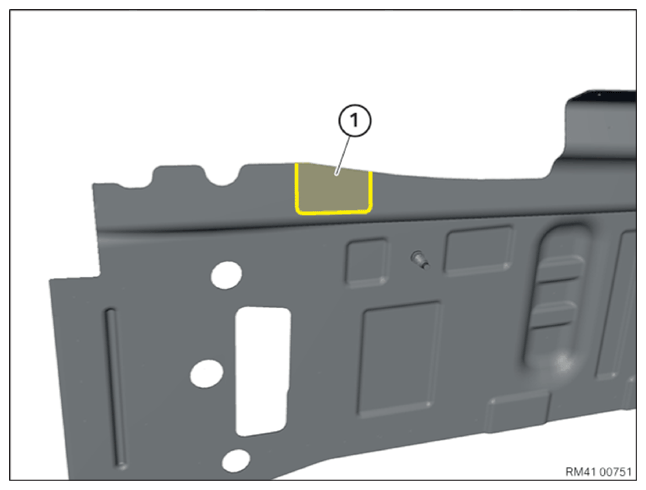

G13797117Courtesy of BMW OF NORTH AMERICA, INC.

Do not apply adhesive to marked area (1).

G13797110Courtesy of BMW OF NORTH AMERICA, INC.

Install new parts and rivet them in the areas (1) and (2) using blind rivet N3.

G13797111Courtesy of BMW OF NORTH AMERICA, INC.

Rivet the new parts in the areas (1) and (2) using blind rivet.

Area Remarks
1 Blind rivet N3
2 Blind rivet N6

Spot-weld in areas (3).

G11648896Courtesy of BMW OF NORTH AMERICA, INC.

Rivet the new parts with the blind rivet N3 in the areas (1).

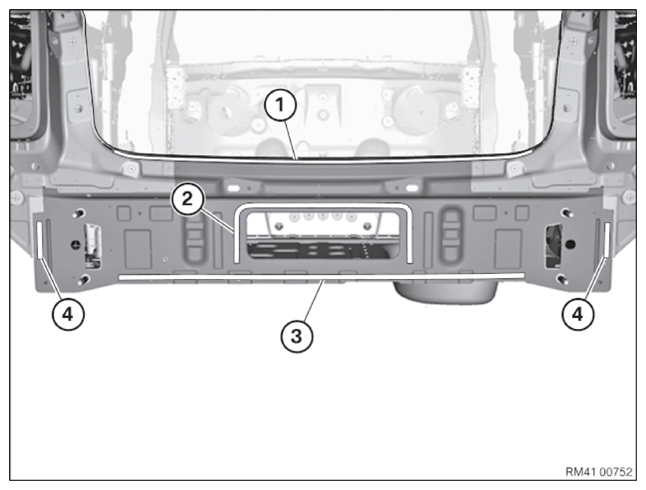

G13797121Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1) to (4) rivet new parts with punch rivets N4.

Area Number
1 9
2 7
3 8
4 2 each

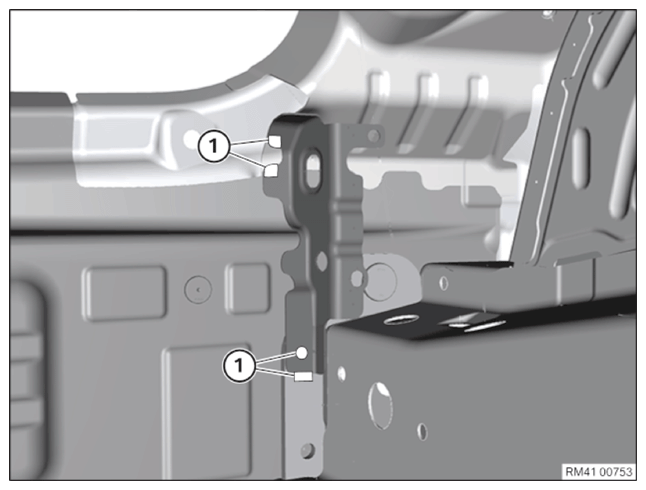

G13797122Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: For purposes of clarity, the tail panel inner section is hidden in this schematic diagram.

MAG-weld the new parts in the areas (1).

G13797113Courtesy of BMW OF NORTH AMERICA, INC.

MAG-weld new part in area (1).

G13797114Courtesy of BMW OF NORTH AMERICA, INC.

MAG-weld new part in area (1).

Mount support for bumper cover to secure tail cowling.

IMPORTANT: Prevent emerging adhesive from coming into contact with support.
Remove emerging adhesive.
Do not use any cleaning agents containing solvents.

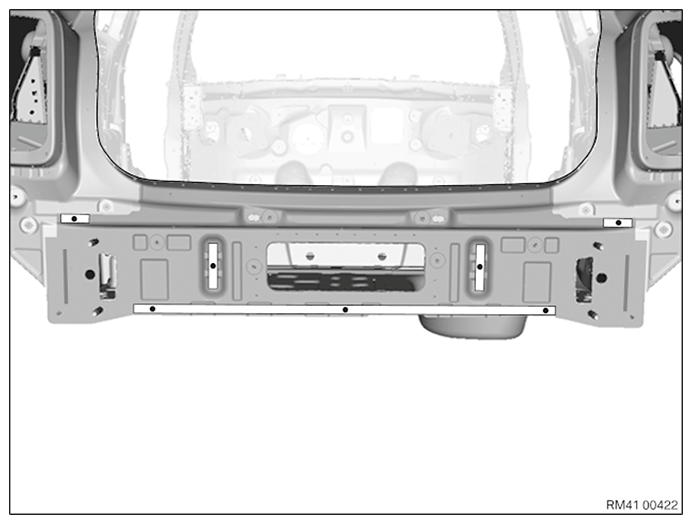

G11648885Courtesy of BMW OF NORTH AMERICA, INC.

After harden of the adhesive install 7 EMC SCREWS  in the areas shown.
