REP-TAT-P-5434-02 Installing the seal on the convertible top brace

Follow-up work

• Close the LOADING AID

• Align the seal (1) using the attachment points.
• Clip in the seal (1) at the convertible top brace across the entire length.

  Courtesy of BMW OF NORTH AMERICA, INC.

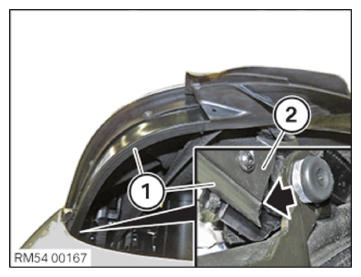

• Clip the seal (1) into the convertible top brace on the left and right.

  The seal (1) must be flush with the convertible to brace (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten screws (1) left and right.

Courtesy of BMW OF NORTH AMERICA, INC.
