REP-TAT-P-5434-02 Fit the roof lining

Follow-up work

Install the TRIM PANEL for the rear case

NOTE: TECHNICAL INFORMATION
For the following task, the convertible top must be shifted electrically several times. In order to ensure the accessibility and the function, the trunk lid must be opened and the tailgate lock must be manually locked.
Only shift the convertible top in short steps and ensure that no parts are trapped.

Courtesy of BMW OF NORTH AMERICA, INC.

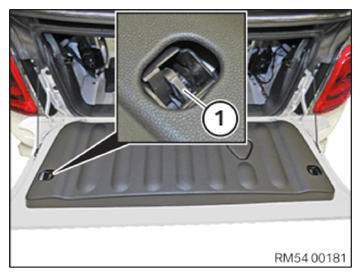

Manually lock the left tailgate lock at the striker (1).

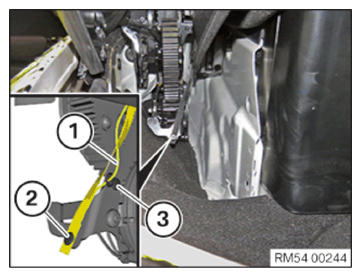

Shift the convertible top until the tension cable (1) is tension-free.

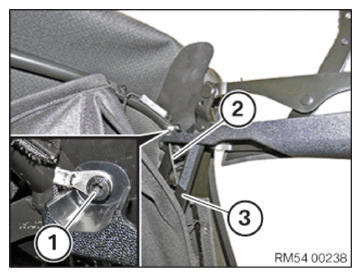

Feed tension cable (1) in the seat belt guide loop (3).
Fasten the luggage strap and the tension cable (1) with the rivet (2).

Courtesy of BMW OF NORTH AMERICA, INC.

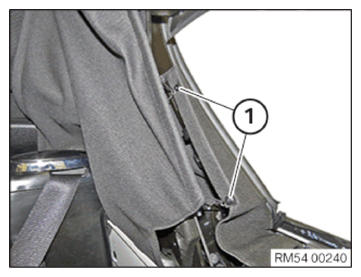

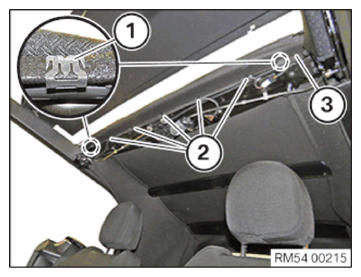

Fasten the headlining with the rivets (2) on the convertible top brace.

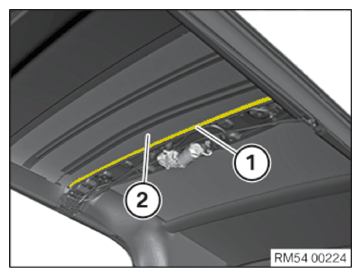

Secure the headlining with the Velcro strips (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Fasten the lower tension cable with rivet (3).

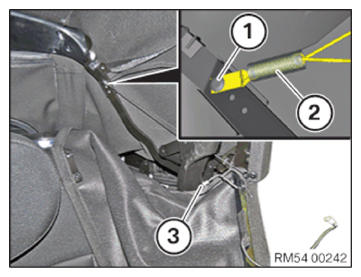

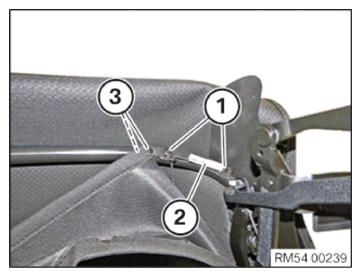

Feed the tension cable (2) behind the linkage and fasten to the bow with the rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Fasten the headlining using screws (1).
TIGHTENING TORQUE SPECIFICATION

Headlining to linkage

1.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

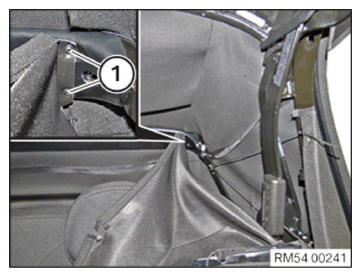

Secure the seat belt guide loop with the rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Position the tension cable with the spring (2) on the bow and fasten using the rivets (1).
Fasten the headlining with the rivets (3) on the bow.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed tension cable (2) behind the linkage (3) towards the top.
Fasten the tension cable using screw (1).
TIGHTENING TORQUE SPECIFICATION

Tension cable/loop to frame

2.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
Secure the headlining using the rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

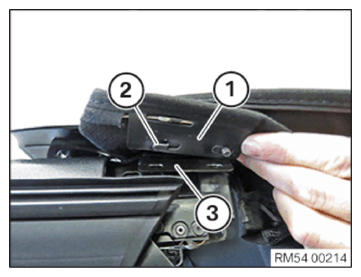

Attach holder (1) with guide (2) in the convertible top frame (3).

Courtesy of BMW OF NORTH AMERICA, INC.

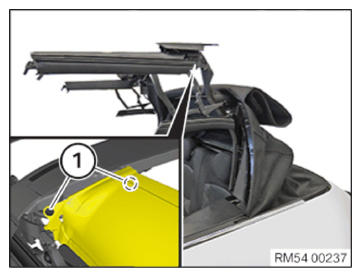

Screw on the nut (1), do not tighten yet.

Courtesy of BMW OF NORTH AMERICA, INC.

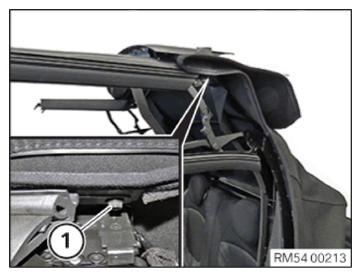

Attach the bow (1) on both sides.

Courtesy of BMW OF NORTH AMERICA, INC.

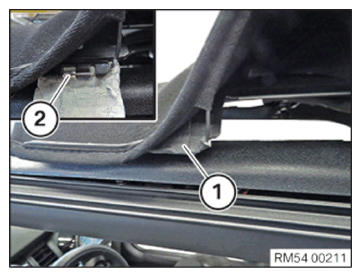

Position the convertible top fabric (2) on the front strut in the direction of the arrow.

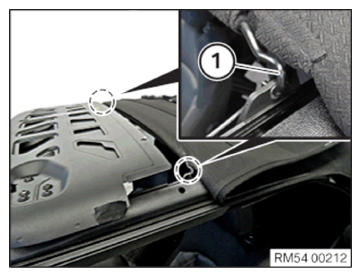

Clip in the detents (1) in the highlighted area.

Courtesy of BMW OF NORTH AMERICA, INC.
Attach tension cable (2).
Secure tension cable (2) with adhesive tape (1).
Close soft top completely.

Courtesy of BMW OF NORTH AMERICA, INC.
Clean the adhesive area (1).
Fix double-sided adhesive tape over the entire width of the adhesive area.
CONSUMABLE DESCRIPTION

Adhesive tape, double-sided 54112290978
Bond convertible top fabric (2) to the bow.

Courtesy of BMW OF NORTH AMERICA, INC.
Attach clamps (1) on bow (3).
Attach cable holder (2) on bow (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Clean the adhesive area (1).
Fix double-sided adhesive tape over the entire width of the adhesive area.
CONSUMABLE DESCRIPTION

Adhesive tape, double-sided 54112290978
Bond convertible top fabric (1) on front strut (2).
Connect the trim (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten nuts (1) on left and right.

TIGHTENING TORQUE SPECIFICATION

Holder to retainer

4 Nm
