REP-TAT-P-5434-01 Removing the trim panel for the rear case

Prerequisite

The convertible top is opened half way.

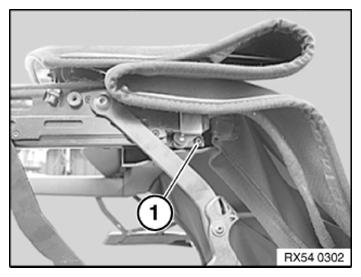

• Releasing and removing the screws (1) on the left and right.

  Courtesy of BMW OF NORTH AMERICA, INC.

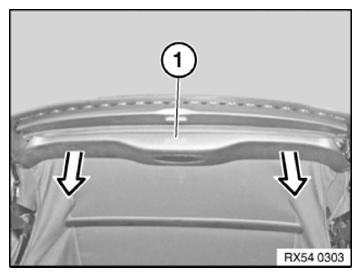

• Unclip the trim panel for the case (1) in a downward motion.

Make sure that the trim panel is released from both sides at the same time in order to prevent the trim panel from breaking.

Courtesy of BMW OF NORTH AMERICA, INC.
