REP-TAT-P-5434-02 Installing the trim strip on the convertible top

Follow-up work

• Close LOADING AID

Prerequisite

The convertible top is completely closed.

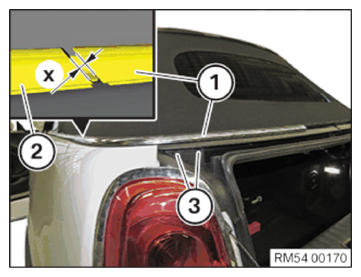

• Position the trim strip (1) and align with the side of the trim strip (2).
  TECHNICAL DATA DESCRIPTION



  Gap dimension, trim strip, convertible top

  4 mm... 5 mm

• Secure the trim strip (1) with the screws (3).

  The screws (3) are longer than the rest of the screws of the trim strip (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

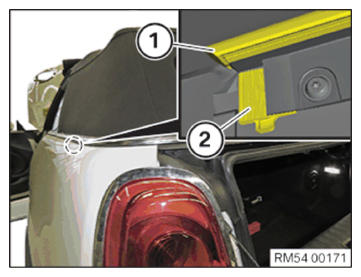

• The trim strip (1) must be flush with the trim strip of the side window glass.

  If necessary, shift the wedge (2) to adjust the trim strip (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

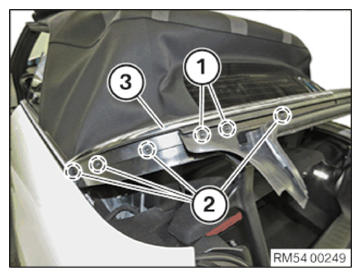

• Tighten the long screws (1) and short screws (2) the trim strip (3).

Courtesy of BMW OF NORTH AMERICA, INC.
