Removing or installing/replacing thigh support cover on left or right front seat (Sport) (Cooper Convertible)

Preliminary work needed:

• Remove THIGH SUPPORT .

Removal:

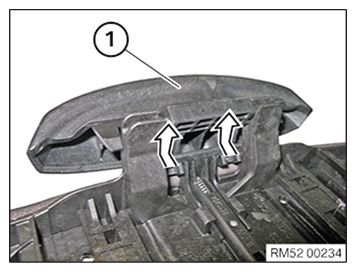

Detach handle (1) in arrow direction and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

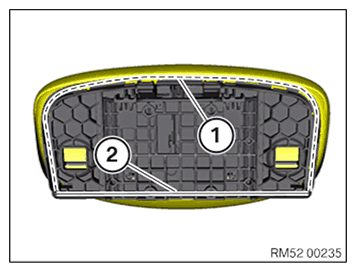

Lever out cover welt in marked area (1).

Detach trim wire in marked area (2) from thigh support.

Remove seat cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach cover welt in marked area (1).

Attach trim wire to thigh support in marked area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

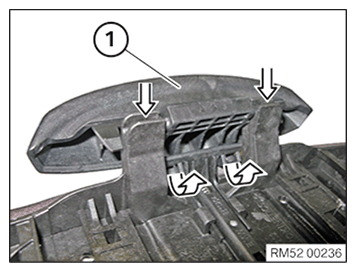

Attach handle (1) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install THIGH SUPPORT .
