Removing and installing/replacing seal for trunk lid (Cooper Convertible)

Preliminary work needed :

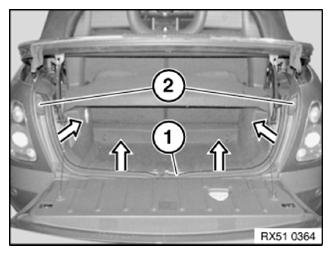

Detach seal (1) from trunk lid cutout.

Installation note:

Start lining in area of filler pieces (2).

Make sure filler pieces (2) are correctly seated on tail panel bolts.

Drain hole of seal in middle on trunk lid cutout must not be clogged.

Courtesy of BMW OF NORTH AMERICA, INC.

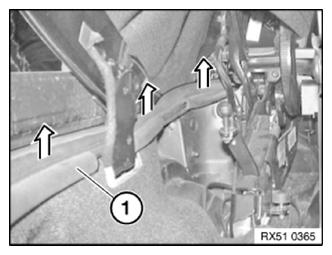

NOTE: Seal (1) runs under soft top up to B-pillar.

Detach seal (1) on left and right from body.

Installation note:

Make sure seal (1) is correctly seated on body and all trim panel parts.

Courtesy of BMW OF NORTH AMERICA, INC.
