Removing and installing/replacing upper rollover protection trim panel (Cooper Convertible)

Preliminary work needed  :

• Close soft top.
• Open EASY LOAD
• Fold rear seat backrest

Removal  :

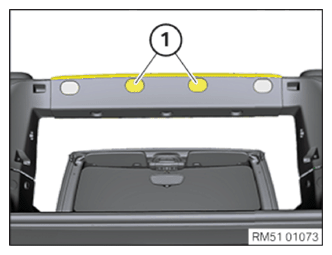

Lever out and remove covers (1).

Courtesy of BMW OF NORTH AMERICA, INC.

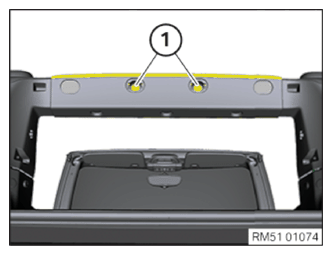

Unscrew the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

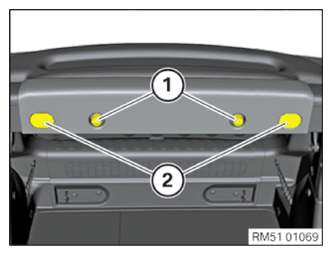

Detach stop pad (1) towards front.

Lever out and remove covers (2).

Courtesy of BMW OF NORTH AMERICA, INC.

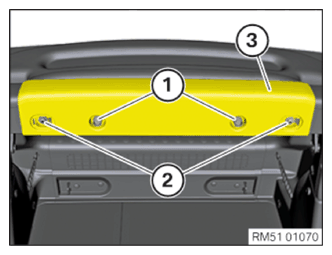

Release screws (1) and (2).

Unclip cover (3) carefully from the lower trim panel and remove upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install cover (3) and clip in on the bottom trim panel.

Tighten down screws (1).

Tightening torque 51 46 2AZ .

Tighten down screws (2).

Tightening torque 51 46 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install stop pad (1).

Install covers (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque 51 46 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install covers (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work  :

• Close EASY LOAD
• Fold rear seat backrest
