Removing and installing/replacing door window glass, front left or right (Cooper Convertible)

Special tools required:

• 51 3 240

Preliminary work needed:

• Remove SOUND INSULATION  on front door.
• Remove outer window CHANNEL STRIP .

Removal:

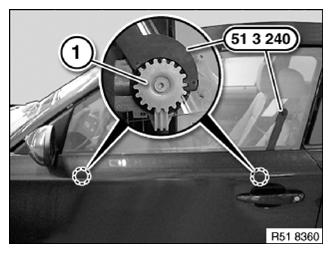

Slacken multipoint head cap screws (1) on ring gear with special tool 51 3 240.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

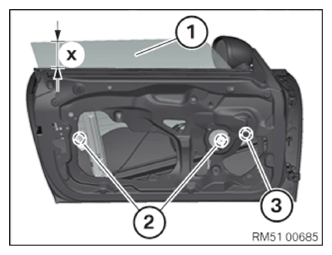

Open door window glass (1) to dimension (x) until multipoint head cap screws (2) are accessible.

Dimension x = approx. 150 mm

Release multipoint head cap screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

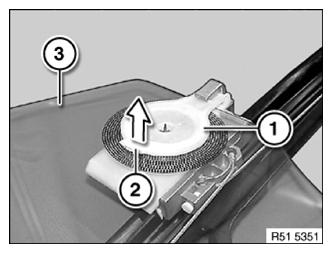

Raise holder (1) at lug (2) and remove door window glass (3) in upward direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

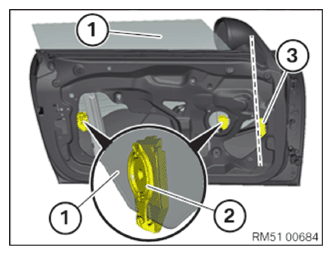

Make sure door window glass (1) is correctly seated on holder (2) and window guide (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten multipoint head cap screws (2) hand force.

Connect plug connection (3) to power window motor.

Close door window glass (1).

Courtesy of BMW OF NORTH AMERICA, INC.

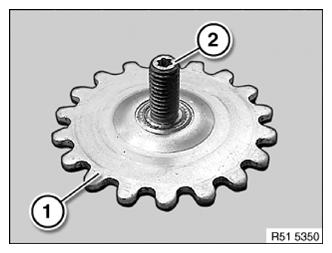

Tighten multipoint head cap screws (1) on ring gear with special tool 51 3 240.

Tightening torque 51 33 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking  :

• Adjust door WINDOW GLASS
• Install outer window CHANNEL STRIP .
• Power window NORMALIZATION .
• Carry out the power windows and crush guard functional check
• Install the SOUND INSULATION  in the front door.
