REP-TAT-P-5111-01 Remove the center trim

Preliminary work

• Remove front BUMPER COVER .
• Remove the upper ORNAMENTAL GRILLE SURROUND
• Remove left and right AIR DUCT TRIM
• Remove the center trim

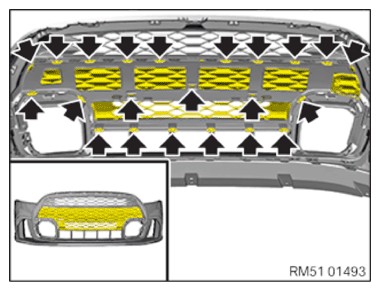

• Detach the trim (1) at all detents (arrows) and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
