REP-TAT-P-5113-02 Installing the upper ornamental grille surround

Courtesy of BMW OF NORTH AMERICA, INC.

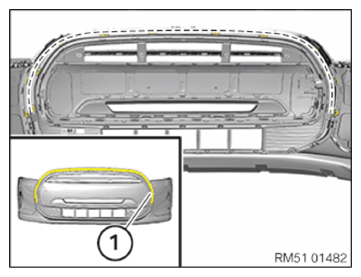

• Check all detents at the upper ornamental grille surround (1)  .

If there are faulty detents, replace the upper ornamental grille surround (1)  .

• Position the upper ornamental grille surround (1)  correctly and engage it at all detents along the dashed line.
