51 11 300 Removing and installing/replacing center trim (Cooper JCW)

Necessary preliminary tasks:

Removal:

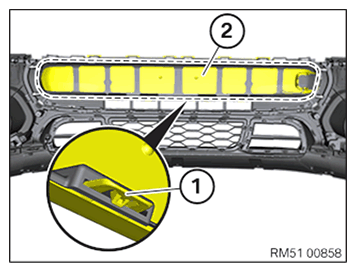

Release latch mechanisms (1) along the dashed line and remove trim (2).

Fig 1: Latch Mechanisms On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Installation:

NOTE: Latch mechanisms (1) on trim (2) must not be damaged or missing.

Engage trim (2) into the latch mechanisms (1).

Fig 2: Latch Mechanisms On Trim

Courtesy of BMW OF NORTH AMERICA, INC.
