51 13 003 Remove and install/replace front ornamental grille frame (Cooper JCW)

Necessary preliminary tasks:

• Remove FRONT BUMPER PANEL

Removal:

Release front ornamental grille frame (1) along the dashed line from the latch mechanisms and remove.

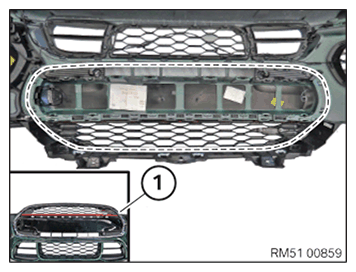

Fig 1: Front Ornamental Grille Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Engage front ornamental grille frame (1) along the dashed line into the latch mechanisms.

Fig 2: Front Ornamental Grille Frame

Courtesy of BMW OF NORTH AMERICA, INC.
