51 11 152 Remove and install/replace the center spoiler on bumper panel (Cooper JCW)

Necessary preliminary tasks:

• Remove ORNAMENTAL GRILLE
• Remove SIDE TRIMS  from front bumper

Removal:

Release latch mechanisms along the dashed line and remove spoiler (1).

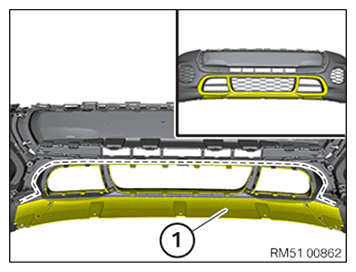

Fig 1: Latch Mechanisms On Spoiler

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position spoiler (1) and engage along the dashed line into the latch mechanisms.

Fig 2: Latch Mechanisms On Spoiler

Courtesy of BMW OF NORTH AMERICA, INC.
