51 11 Removing and mounting/exchanging side cover of front bumper (Cooper S and JCW)

Preliminary work needed:

• Remove FRONT BUMPER COVER

REMOVAL:

Release catches (1).

Remove cover (2).

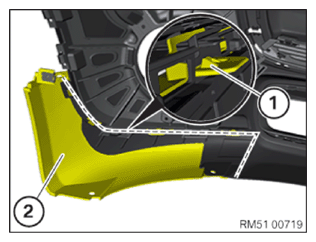

Fig 1: Locating Catches And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement (depending on version):

• Remount ULTRASONIC SENSOR .

INSTALLATION:

Engage cover (2) in the detents (3).

Fig 2: Locating Catches And Cover

Courtesy of BMW OF NORTH AMERICA, INC.
