63 13 200 Removing and installing/replacing front left or right side repeaters

Special tools required:

WARNING: Follow the SAFETY INSTRUCTIONS for handling bulbs/light sources (exterior lights).

Removal:

Raise engine compartment lid.

Release latch mechanism of side repeater (1) at rear side of side panel with special tool 00 9 325 .

Remove side repeater (2) from side panel.

Unlock and disconnect associated connector.

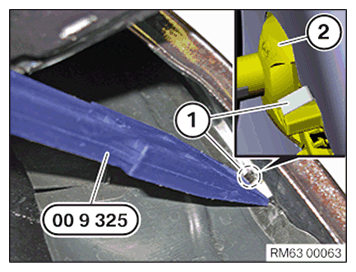

Fig 1: Releasing Latch Mechanism Of Side Repeater At Rear Side Of Side Panel With Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Guides and clamp on side repeater (1) must not be missing or damaged.

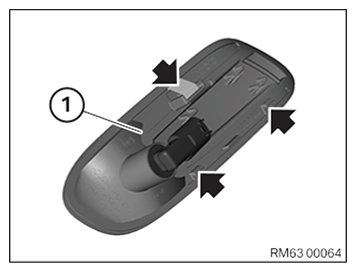

Fig 2: Side Repeater

Courtesy of BMW OF NORTH AMERICA, INC.

Connect associated connector.

Position and side repeater (1) at side panel (2) and engage.

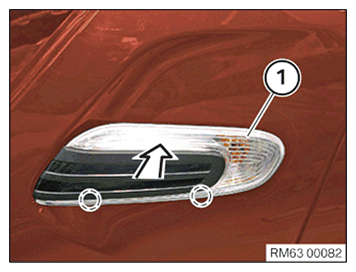

Fig 3: Positioning Side Repeater At Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.
