63 99 231 Replacing bulb for rear fog light

WARNING: Follow the SAFETY INSTRUCTIONS for handling bulbs/light sources (exterior lights).

Removal:

Turn bulb holder (1) counter clockwise and remove from rear fog light (2).

Pull bulb (3) out of bulb holder (1).

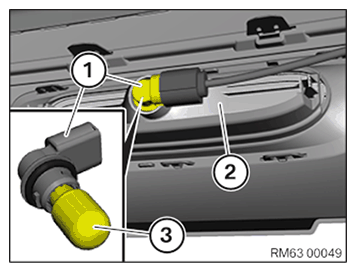

Fig 1: Rear Fog Light, Bulb Holder And Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert bulb (3) into bulb holder (1).

Insert bulb holder (1) into rear fog light (2) and turn clockwise.

NOTE: Note BULB TYPE .

Make sure bulb holder (1) is correctly fitted in rear fog light (2).

Fig 2: Rear Fog Light, Bulb Holder And Bulb

Courtesy of BMW OF NORTH AMERICA, INC.
