63 17 075 Removing and installing/replacing right front fog light
WARNING:
Follow the SAFETY INSTRUCTIONS for handling bulbs/light sources (exterior lights).
Necessary preliminary tasks:
- Remove FRONT BUMPER PANEL
Removal:

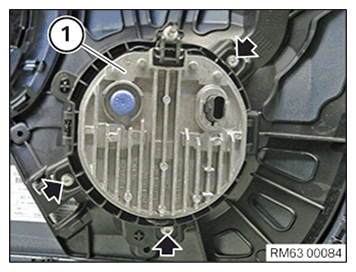

Release screws.
Remove fog light (1) from holder.
Installation:
Join fog light (1) in holder and tighten with screws.
Tightening torque: 4 Nm.
On replacement of fog light or bumper panel at front:
- If necessary, remount bulbs
- Adjust FOG LIGHTS
