65 12 071 Removing and installing or replacing amplifier (standard)
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .
Comply with notes on HANDLING OPTICAL FIBRES .
Necessary preliminary tasks:
- Disconnect BATTERY EARTH LEAD
- Remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL ON LEFT .
REMOVAL:

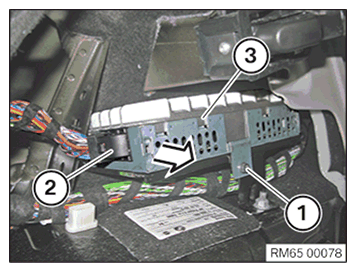

Release screw (1).
Unfasten plug connection (2) and disconnect.
Remove amplifier (3) in direction of arrow.
Replacement:
In Harman Kardon version, perform VEHICLE PROGRAMMING AND ENCODING .
INSTALLATION:
NOTE:

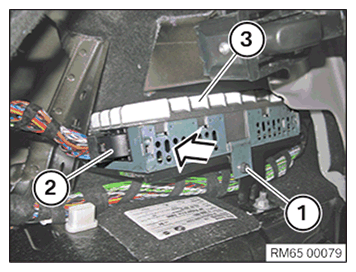

Lugs (1) must be correctly slid into guide (2).
Check that amplifier (3) is securely seated.
Check that amplifier (3) is securely seated.
Install amplifier (3) in direction of arrow.
Tighten screw (1).
Join and lock plug connection (2).
