51 47 151 Removing and installing/replacing left luggage compartment wheel arch trim

Necessary preliminary tasks:

REMOVAL:

Detach cover (1).

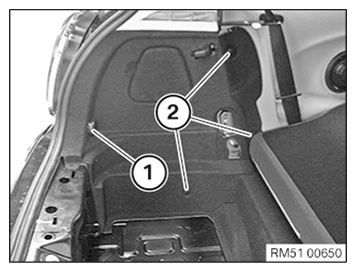

Fig 1: Luggage Compartment Wheel Arch Trim Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover (1) and release bolt underneath.

Release screw (2) and remove cover (3).

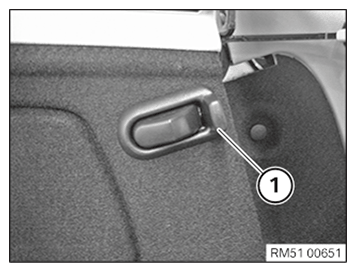

Fig 2: Cover And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover (1) and release bolt underneath.

Remove lashing eye.

Release expanding rivet (2).

Feed out and remove luggage compartment wheel arch panel.

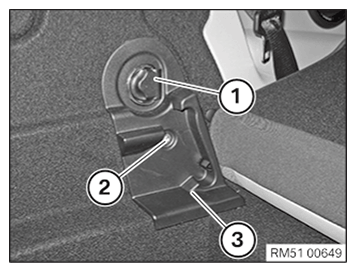

Fig 3: Cover And Expanding Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

Feed in luggage compartment wheel arch panel.

Mount expanding rivets (2).

Position lashing eye, tighten bolt and mount cover (1).

Fig 4: Cover And Expanding Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

Position cover (3).

Tighten bolt and mount cover (1).

Tighten screw (2).

Fig 5: Cover And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Mount cover (1).

Fig 6: Luggage Compartment Wheel Arch Trim Cover
